SPECIFINATIONS

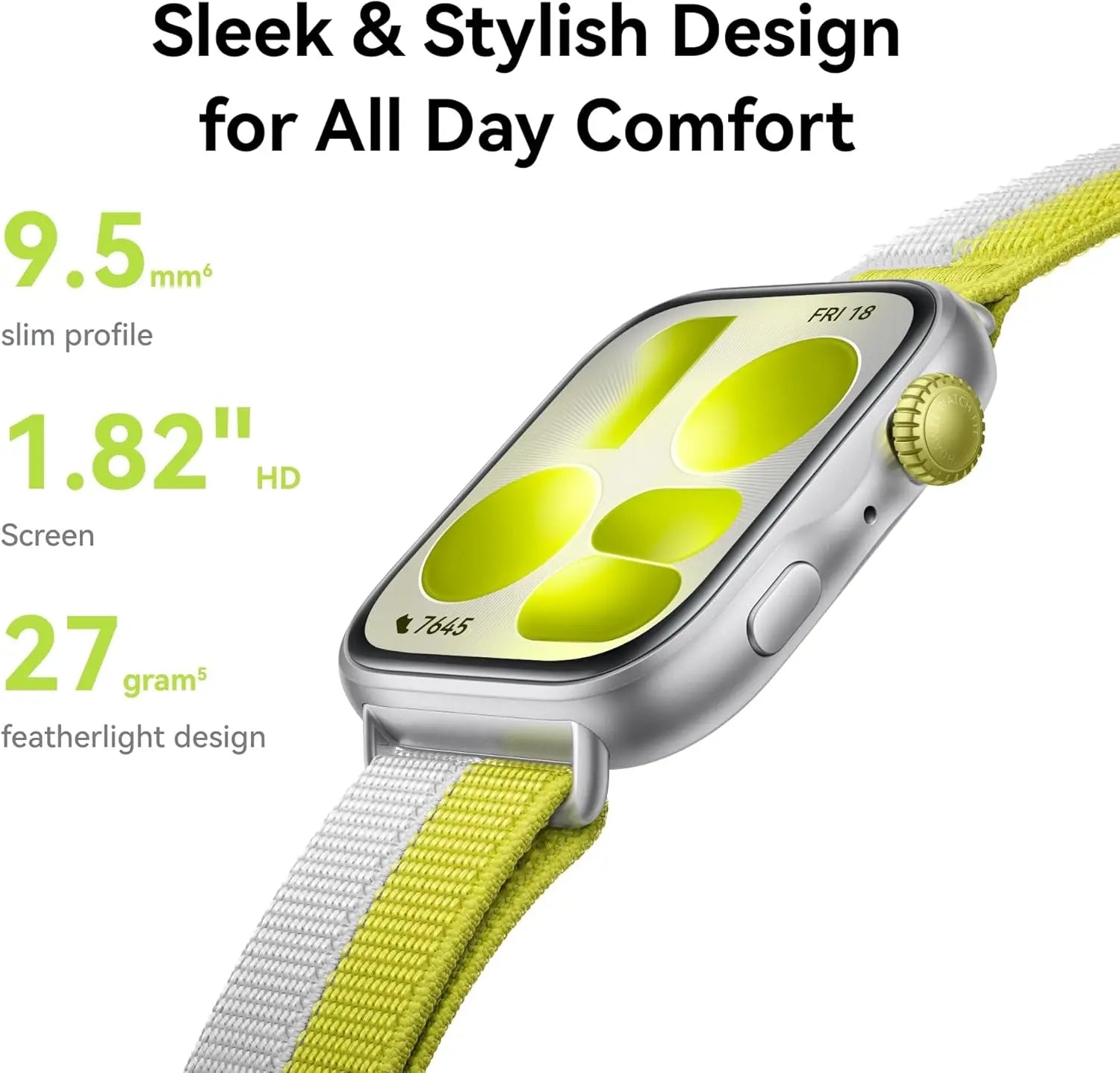

Dimensions
42.9 × 38.2 × 9.5 mm

*9.5 mm is the thickness of the watch (excluding the sensor area).

**Product size, weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.


Wrist Size
Purple
120-190 mm

Silver, Green, White and Black
130-210 mm


Watch Strap

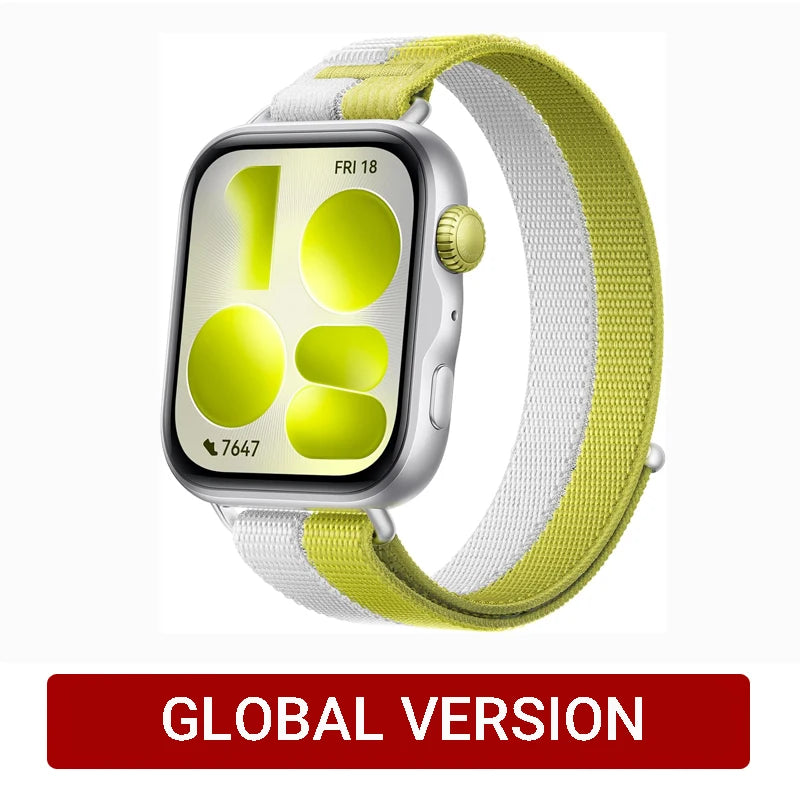

Green-Grey Nylon Strap
Purple Fluoroelastomer Strap
Green Fluoroelastomer Strap
White Fluoroelastomer Strap
Black Fluoroelastomer Strap


Weight
Approximately 27 g (without the strap)

*Product size, weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.


Display
1.82 inch AMOLED
480 × 408 pixels, PPI 347

Peak Brightness
2500 nits

*2500 nits is the peak brightness achieved under 80% average picture level (APL) image stimulation. Data comes from Huawei labs. Screen brightness will vary depending on the environment.


Watch Case
Material
Aluminum alloy


Sensors
Accelerometer sensor
Gyroscope sensor
Magnetometer sensor
Ambient light sensor

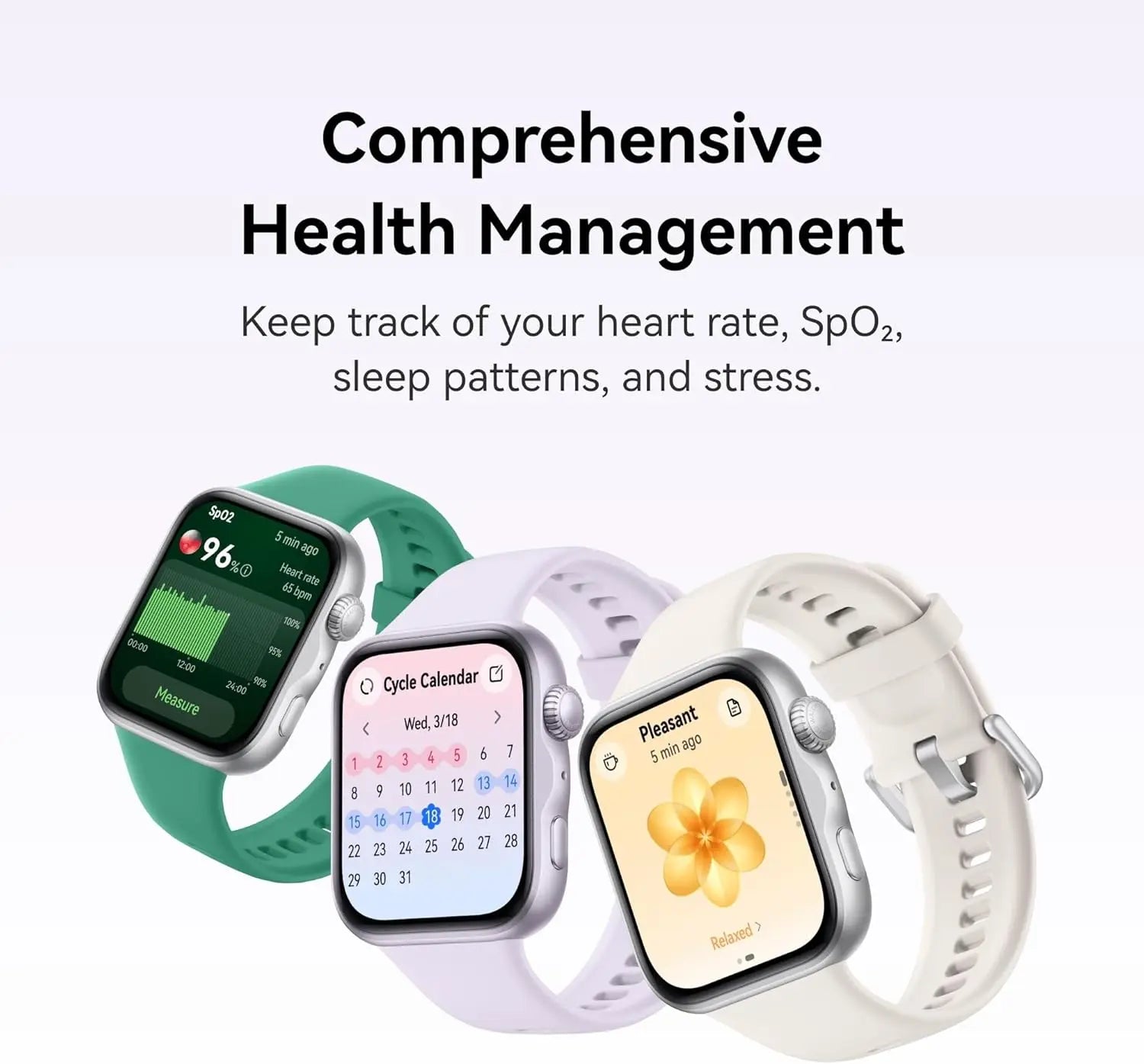

Optical heart rate sensor
Barometer sensor
Temperature sensor


Button
Home Button (Rotating Crown) and Side Button


Charging Port
Wireless charging

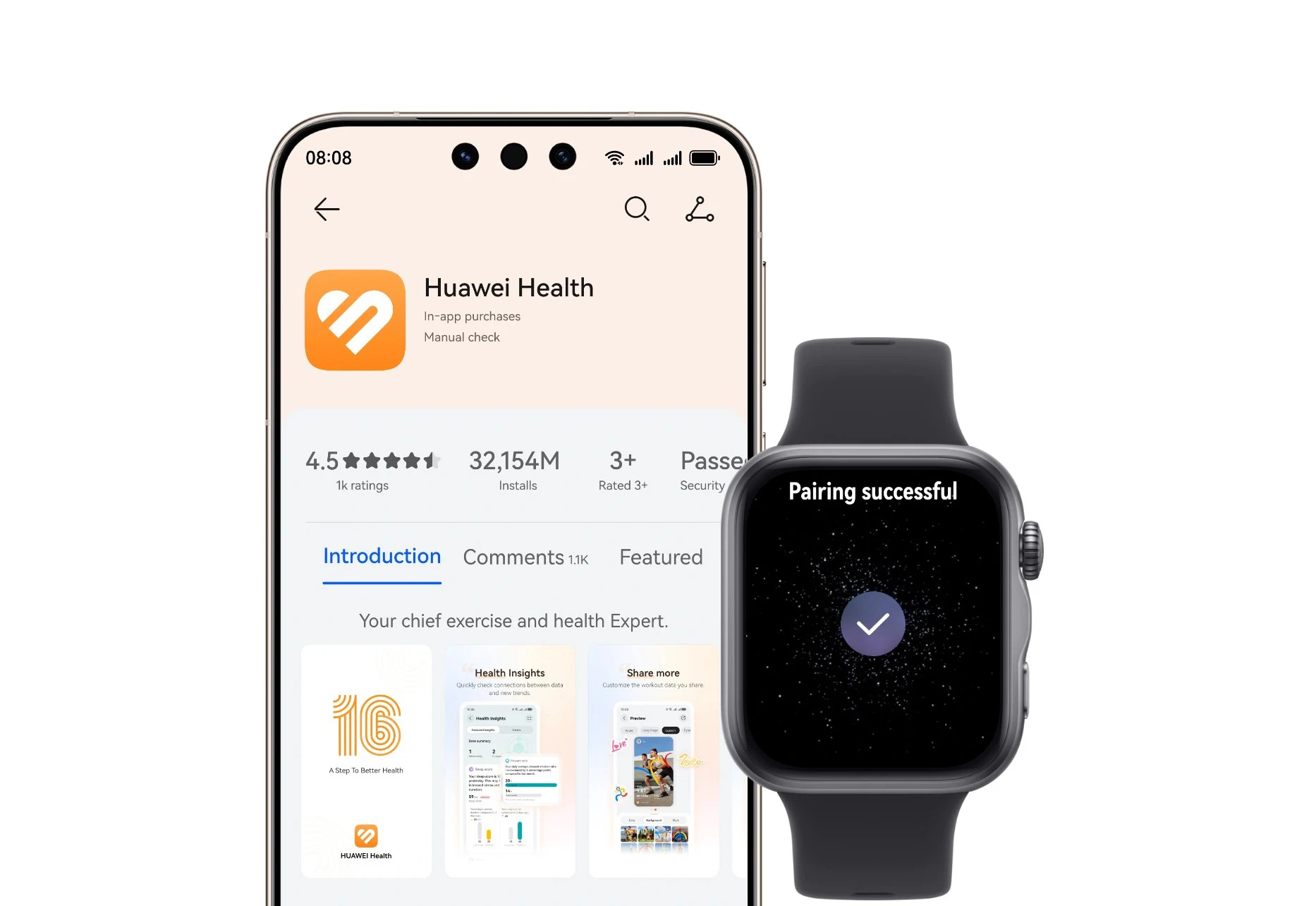

System Requirements
Android 9.0 or later
iOS 13.0 or later


Waterproof Level
5 ATM water-resistant

*Complies with 5 ATM-rated water resistance under the ISO 22810:2010 standard, which indicates that the device can withstand up to 50 metres of static water pressure for 10 minutes, but does not mean that the product is water-resistant in water that is 50-metre deep.

IP6X

*Complies with the IEC 60529:2013 standard (level 6).

The product can be worn during shallow water activities such as swimming in a pool or along the coast. After wearing the device in water activities, clean and dry it promptly, remove the water stains from the product surfaces and all holes, and use the device's drainage feature to avoid negative impact on device performance.

The product should not be worn in the following scenarios: (Damage to the device caused by immersion in liquid is not covered by the warranty if the device is worn in an inappropriate scenario.) (1) Hot showers, hot springs, saunas (steam rooms), and other activities in high-temperature and/or high-humidity environments. (2) Activities that could expose the device to shower gel, shampoo, soapy water, and any other laundry or cleaning products. If the device does come into contact with any such product, rinse and soak the device in fresh water for 30 minutes. (3) Free dives, scuba dives, and any other diving activities. (4) Nylon straps are not designed for water activities (such as swimming) or to withstand sweat, and therefore it is recommended that other straps be used in such scenarios.

For more information about the water resistance of Huawei wearables, please visit: https://consumer.huawei.com/en/support/content/en-us15851428/

Water resistance is not permanent, and performance may deteriorate with daily wear and tear. It is recommended that you regularly take your device to an authorised Huawei service center for inspection and maintenance.


Connectivity
NFC
Supported

Bluetooth
2.4 GHz, supports BT6.0 and BR + BLE

GNSS
GPS (L1 + L5 Dual-band)/GLONASS/BeiDou (B1I + B1C + B2a Tri-band)/GALILEO (E1 + E5a Dual-band)/QZSS (L1 + L5 Dual-band)/NavIC


Speaker
Supported


Microphone
Supported


Environment
Temperature
–20℃ to +45℃


Charging
Charger Voltage and Current Requirements
5V-10V DC/2A

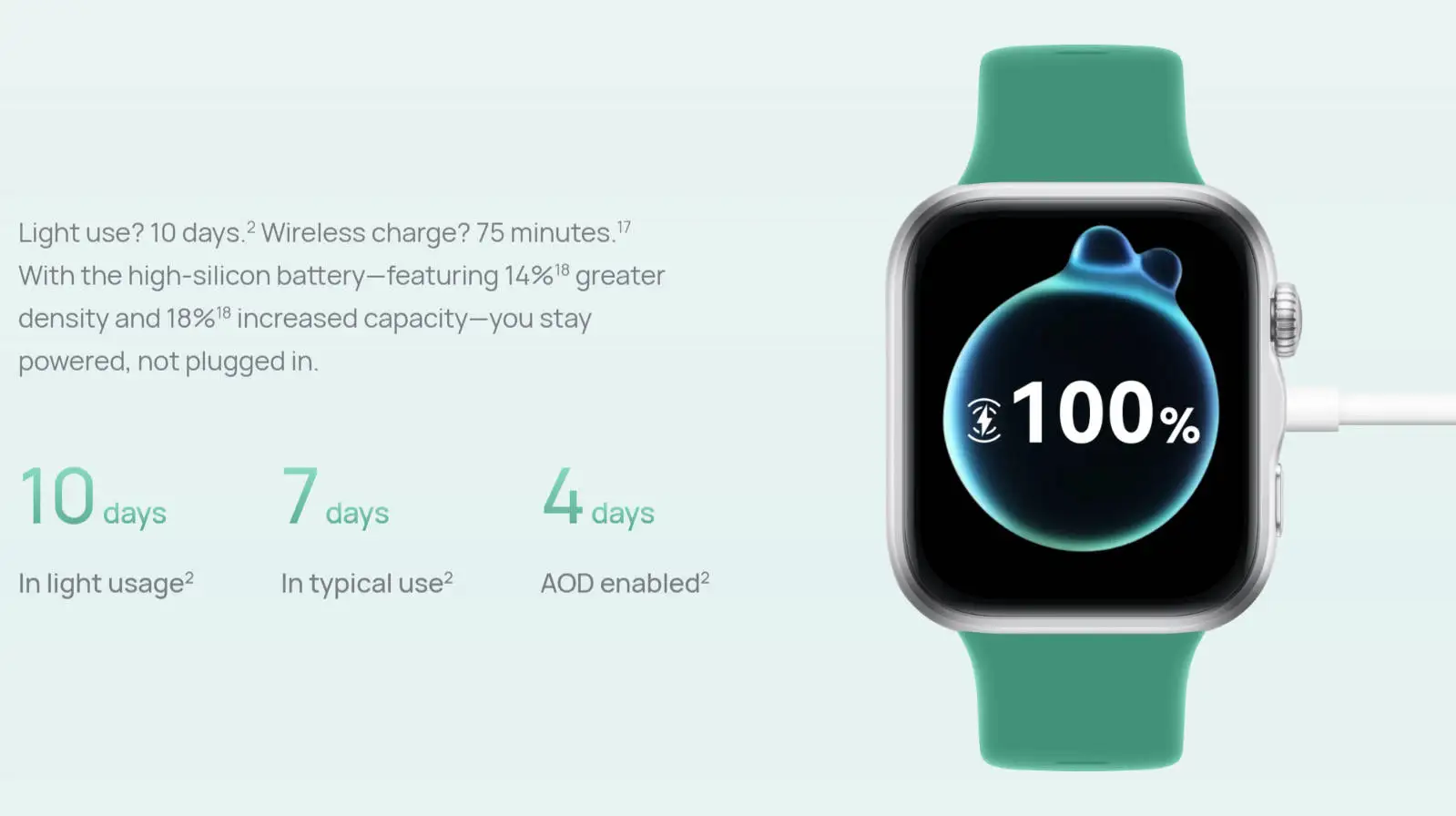

Battery Life
The battery can last for up to 10 days with light usage, up to 7 days with typical usage, or up to 4 days with AOD enabled.
The battery life with light usage is tested under the following conditions: default settings, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ enabled at night, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The battery life with typical usage is tested under the following conditions: default settings, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ enabled at night, stress monitoring enabled, pulse wave arrhythmia analysis and sleep breathing awareness features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

The battery life with AOD enabled is tested under the following conditions: default settings, AOD enabled, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ enabled at night, automatic stress monitoring enabled, pulse wave arrhythmia analysis and sleep breathing awareness features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

*Data comes from HUAWEI labs. Actual usage may vary depending on the specific product, usage habits, and environmental factors.


In The Box
Watch × 1
Charging Cradle (including the charging cable) × 1
